Design intent

Interactive floor plan

Scaled to the survey footprint 68′-1″ × 134′-7″ (≈9,163 sf) so the full program fits. Fleur Delish stalls remain 15′ W × 10′ D each. Capacities remain preliminary pending Fire Marshal approval.

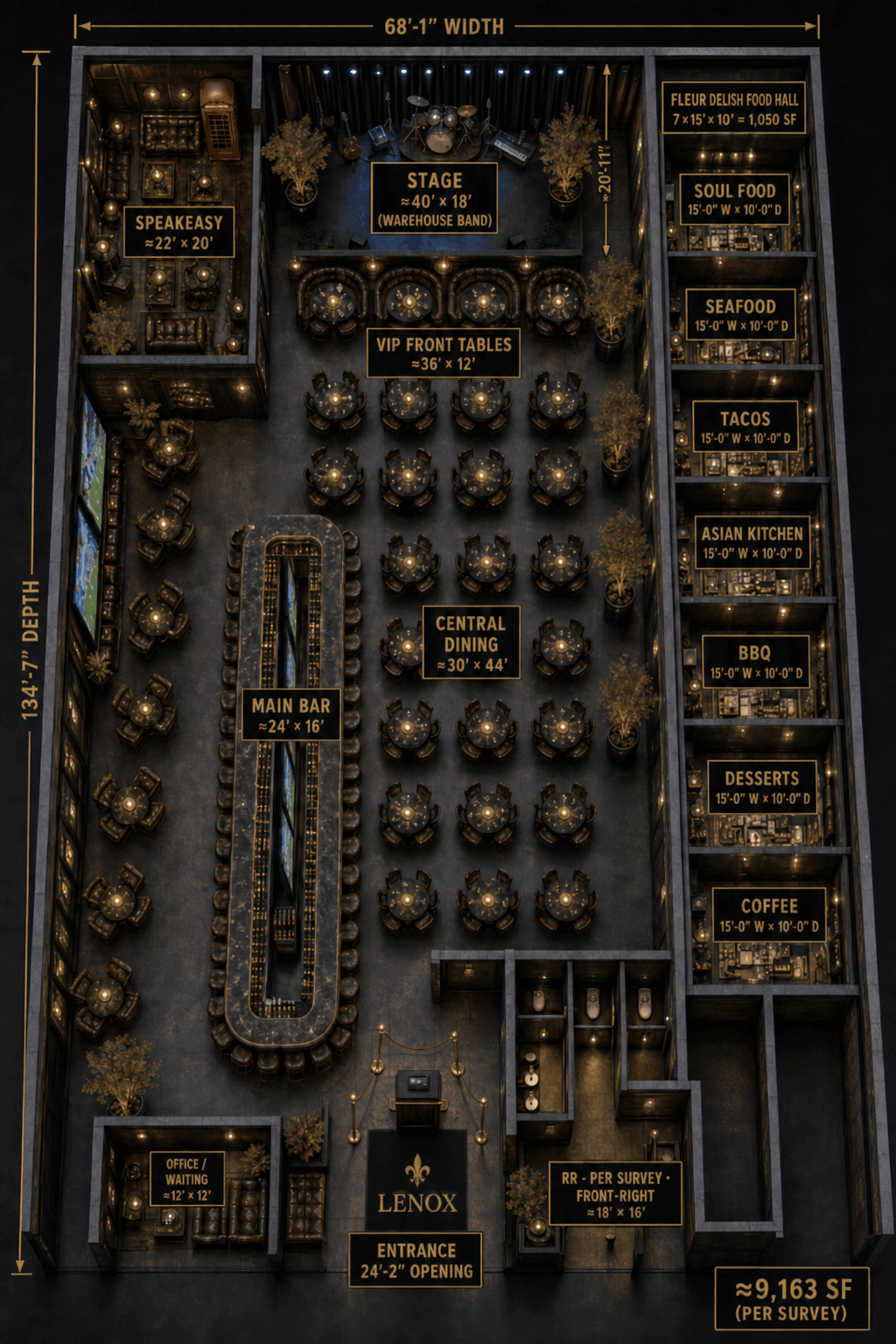

LENOX photorealistic bird's-eye interior floor plan

Fit check

Section measurements

Preliminary dimensions for partner review, locked to the applicant floor survey (68′-1″ × 134′-7″ ≈ 9,163 sf). Verify with architect of record.

Zone	Size	Area
Overall building (survey)	68′-1″ W × 134′-7″ D	≈9,163 sf
Rear courtyard patio slab (photo-scaled)	≈55′ along wall × ≈24′ deep	≈1,320 sf gross
Fleur Delish Food Hall (7 stalls)	7 × (15′ W × 10′ D)	1,050 sf
Entrance / host & waiting	≈24′-2″ opening × ≈16′	≈385 sf
Main Bar (island)	≈24′ × 16′	≈384 sf
Central Dining	≈30′ × 44′	≈1,320 sf
VIP Front Tables	≈36′ × 12′	≈432 sf
Live Stage (indoor secondary entertainment)	≈40′ × 18′ (within ≈20′-11″ depth)	≈720 sf
Sports Lounge	≈20′ × 32′	≈640 sf
Speakeasy Whiskey Lounge	≈22′ × 20′	≈440 sf
Restrooms (front-right, per survey)	≈18′ × 16′	≈288 sf

Exterior

Front · parking · courtyard

LENOX luxury front exterior in daylight — black, charcoal, gold — Front · black / charcoal / gold (day)

LENOX proposed parking — about 50 spaces with front lot plus left-side bay and ADA at main entry facing Chef Menteur Highway — ≈50 spaces · front + left side · ADA at entry · conceptual

LENOX rear courtyard evening — raised slab outlined by iron rail and planters, fleur-de-lis accents, speakeasy booth — Rear · evening · slab rail + planters

LENOX rear courtyard day — raised slab outlined by iron rail and planters, fleur-de-lis accents, speakeasy booth — Rear · day · slab rail + planters

LENOX courtyard day with 20ft bar and restroom containers at back-left and west emergency exits — Courtyard · containers + west EXIT · day

LENOX courtyard evening with 20ft bar and restroom containers at back-left and west emergency exits — Courtyard · containers + west EXIT · evening

LENOX full courtyard day with 20ft bar and split restroom containers — Courtyard · containers full view · day

LENOX full courtyard evening with 20ft bar and split restroom containers — Courtyard · containers full view · evening

LENOX 20-foot container outdoor bar detail — 20′ container bar · detail

LENOX 20-foot container restrooms split men and women — 20′ container restrooms · Men / Women

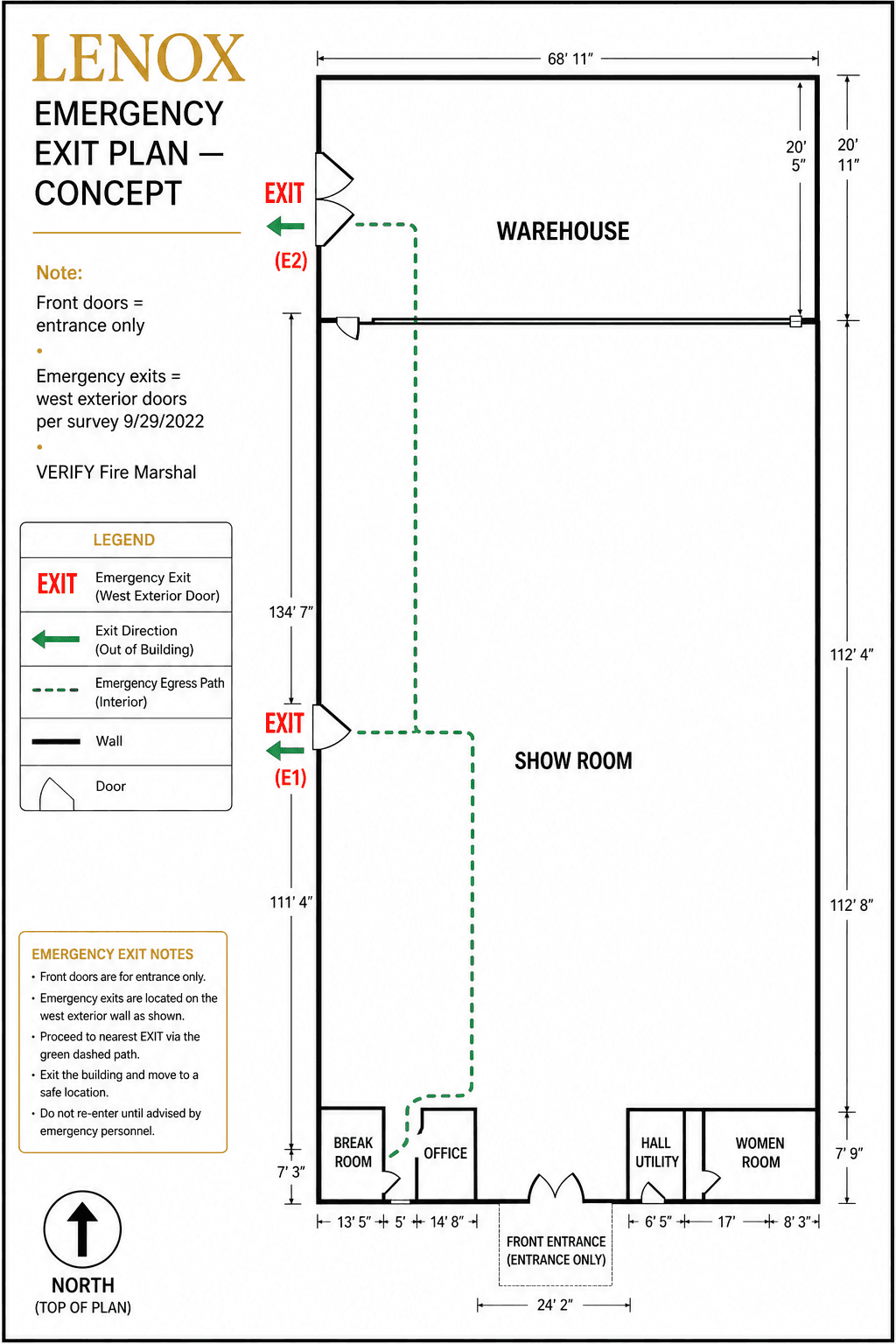

LENOX conceptual emergency exit plan — west exterior doors only; front labeled entrance — Emergency exit plan · west exits only

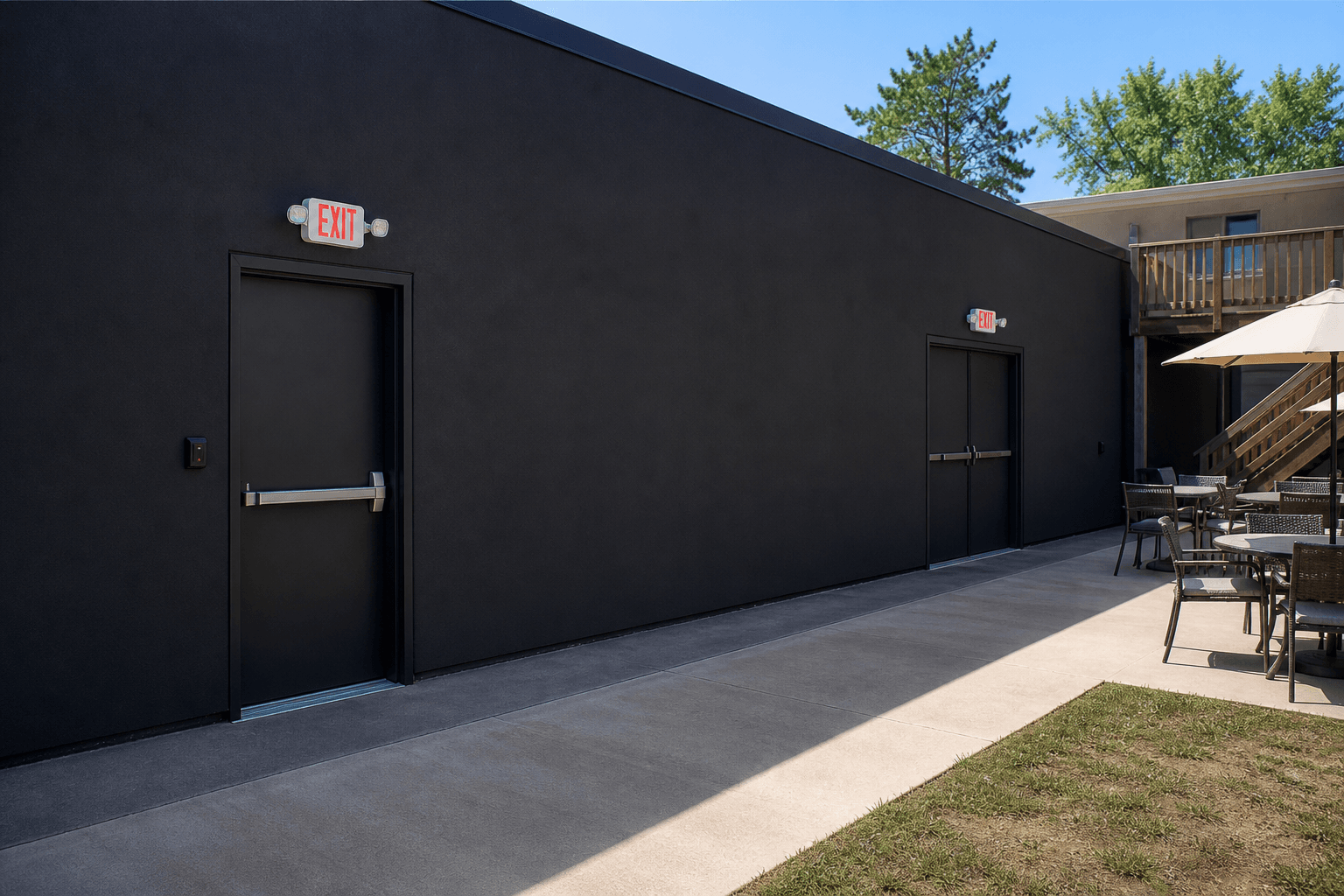

LENOX west exterior emergency exit doors with EXIT signs — West emergency EXIT doors · photo concept

Parking & arrival

Chef Menteur to main entry

Proposed grey charcoal LENOX front with ≈50 parking spaces (front lot + left-side bay), ADA at the entrance, facing Chef Menteur Highway. Conceptual restriping — sealed civil stall inventory still required.

Daytime detail
